สถานที่กำเนิด: | จีน |
---|---|
ชื่อแบรนด์: | KAD |
ได้รับการรับรอง: | CE |
หมายเลขรุ่น: | CDDW |
จำนวนสั่งซื้อขั้นต่ำ: | 1 หน่วย |
ราคา: | To be negotiated |
รายละเอียดการบรรจุ: | พาเลทเหล็ก + ฟิล์มพลาสติก |
เวลาการส่งมอบ: | 7วันทำการ |
เงื่อนไขการชำระเงิน: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
สามารถในการผลิต: | 50 หน่วย/เดือน |
ชื่อสินค้า: | เครื่องสต๊อกเวย์ไฟฟ้า | ความจุ: | 1200/1600 |
---|---|---|---|
ยกสูง: | 1600/200012500/3000 | ความยาว: | 1770 |
ความกว้าง: | 850 | Battery Capacity: | 2*7012*80 |
โลเตจแบตเตอรี่: | DC24V | พลัง: | 0.75 |
เน้น: | 1 ตัน เครื่องเก็บพอลเล็ตไฟฟ้า,1000KG พาเล็ตไฟฟ้า Stacker,เครื่องเก็บพัลเล็ตไฟฟ้าขนาด 3 เมตร |

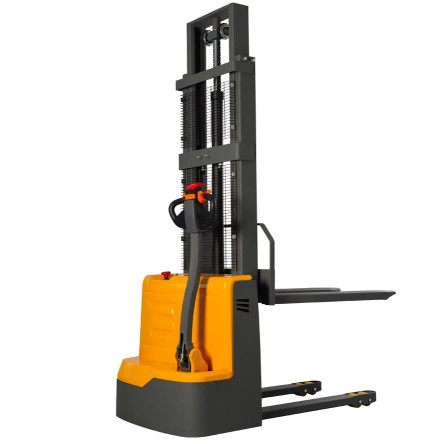

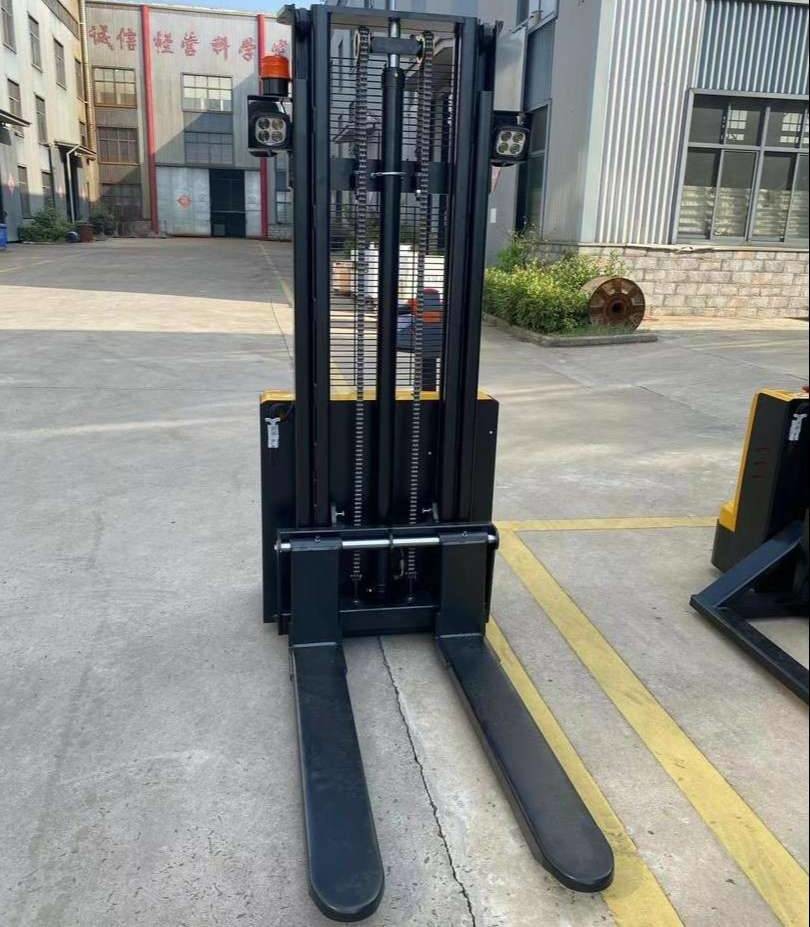

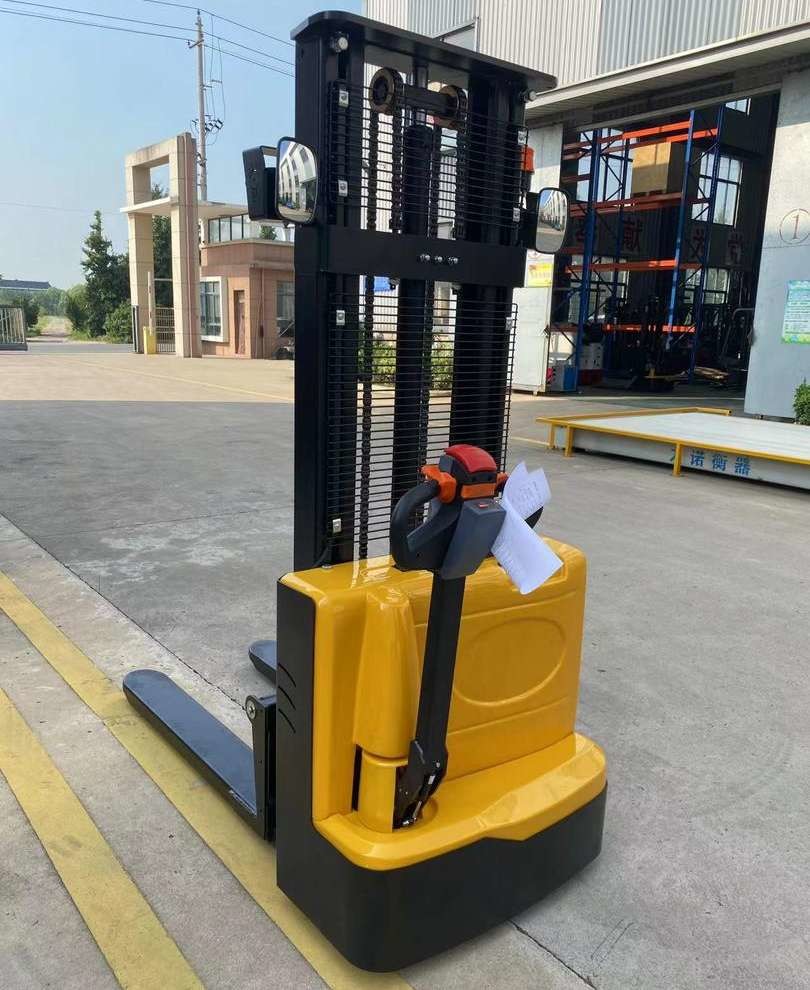

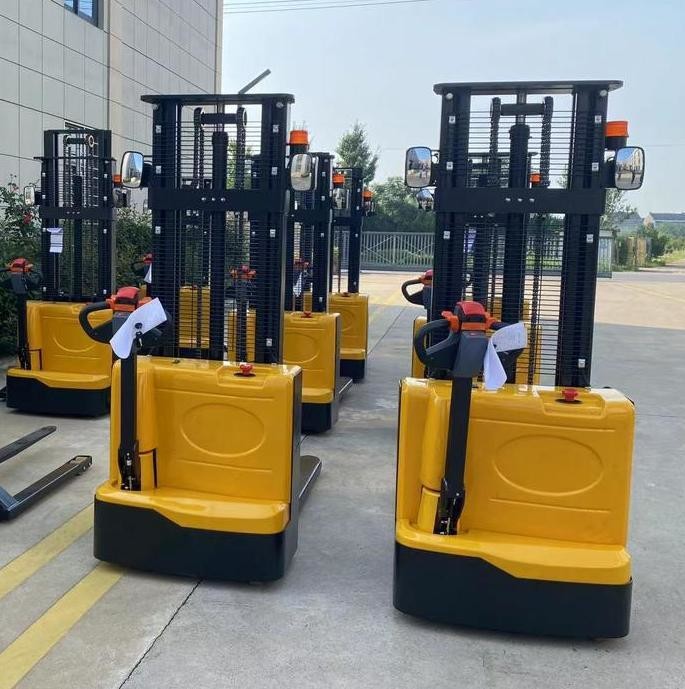

1 Ton 3 Meter 1000kg 3 M Electric Pallet Walkie Stacker Electric Pedestrian Stacker
Product Description
Pedestrian electric stacker cranes are redefining material handling in environments where space is precious and flexibility is crucial. These stacker cranes are designed to improve efficiency and usability, with unique advantages that make them stand out in the fields of warehouse management and logistics.
Walk-behind electric stackers provide a tailored solution for handling goods in specialized and space-constrained environments. Their unique blend of ergonomic design, precision maneuverability, and operational flexibility make them an invaluable tool for modern logistics and warehouse operations.
MODEL
|
|
|
CDDW12 CDDW16
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Walkie
|
|
Load Capacity
|
Q
|
KG
|
1200/1600
|
|
Load Center
|
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
CDDW12
|
KG
|
470/485/505/520
|
CDDW16
|
495/510/532/553
|
|||
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|
Max.Height when operating
|
H4
|
MM
|
2080/2730/3230/3730
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L
|
MM
|
1770
|
|
Width
|
B
|
MM
|
850
|
|
Fork Length
|
L1
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1250
|
|
Fork Outside Width
|
B1
|
MM
|
680
|
|
Fork Inside Width
|
B2
|
MM
|
305
|
|
Min.Turning Radius
|
WA
|
MM
|
1390
|
|
parameter
|
Driving Speed(Empty/Full Load)
|
|
MM/S
|
5.0/5.0
|
Lifting Speed(Empty/Full Load)
|
|
MM/S
|
140/135
|
|
Descending Speed(Empty/Full Load)
|
|
MM/S
|
150/155
|
|
Max.Gradient(Empty/Full Load)
|
|
%
|
7/5
|
|
Brake
|
|
|
Electromagnetic
|
|
Motor
|
Driving Motor
|
|
KW
|
DC/0.75
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24*70/24*80Ah
|
Others
|
Noise level DIN 12053
|
|
DB
|
<70
|
