สถานที่กำเนิด: | จีน |
---|---|
ชื่อแบรนด์: | KAD |
ได้รับการรับรอง: | CE |
หมายเลขรุ่น: | ซีดีดีแอล |
จำนวนสั่งซื้อขั้นต่ำ: | 1 หน่วย |
ราคา: | $2200/UNIT |
รายละเอียดการบรรจุ: | พาเลทเหล็ก + ฟิล์มพลาสติก |
เวลาการส่งมอบ: | 7วันทำการ |
เงื่อนไขการชำระเงิน: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
สามารถในการผลิต: | 50 หน่วย/เดือน |
ชื่อสินค้า: | เครื่องสต๊อกเวย์ไฟฟ้า | ความจุ: | 1200/1600 |
---|---|---|---|
ยกสูง: | 1600/200012500/3000 | ความยาว: | 1770 |
ความกว้าง: | 850 | ความจุของแบตเตอรี่: | 2*7012*80 |
เน้น: | 1 ton Electric Pallet Stacker,1.5 tons Electric Pallet Stacker,1500kg Electric Pallet Stacker |

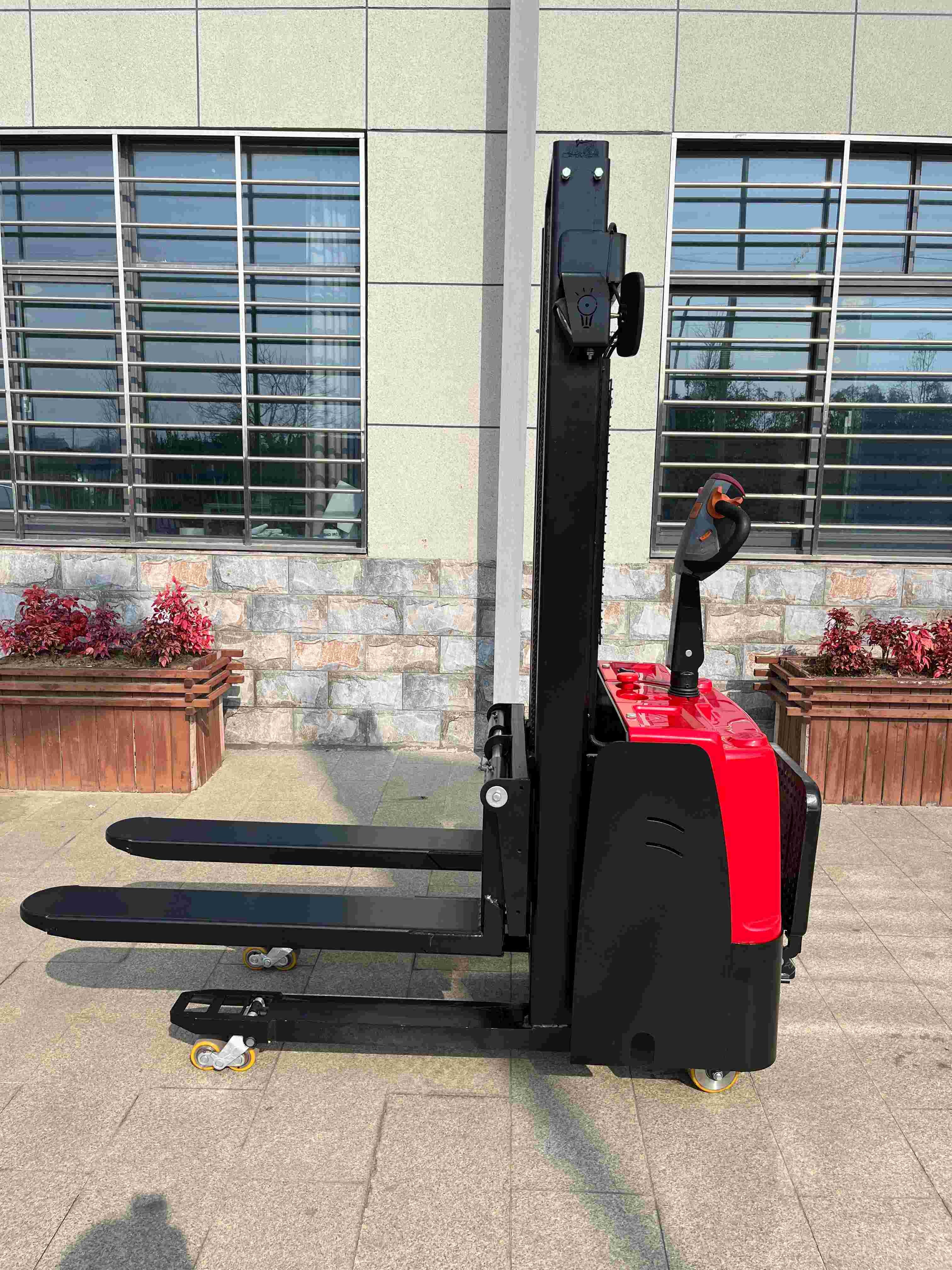

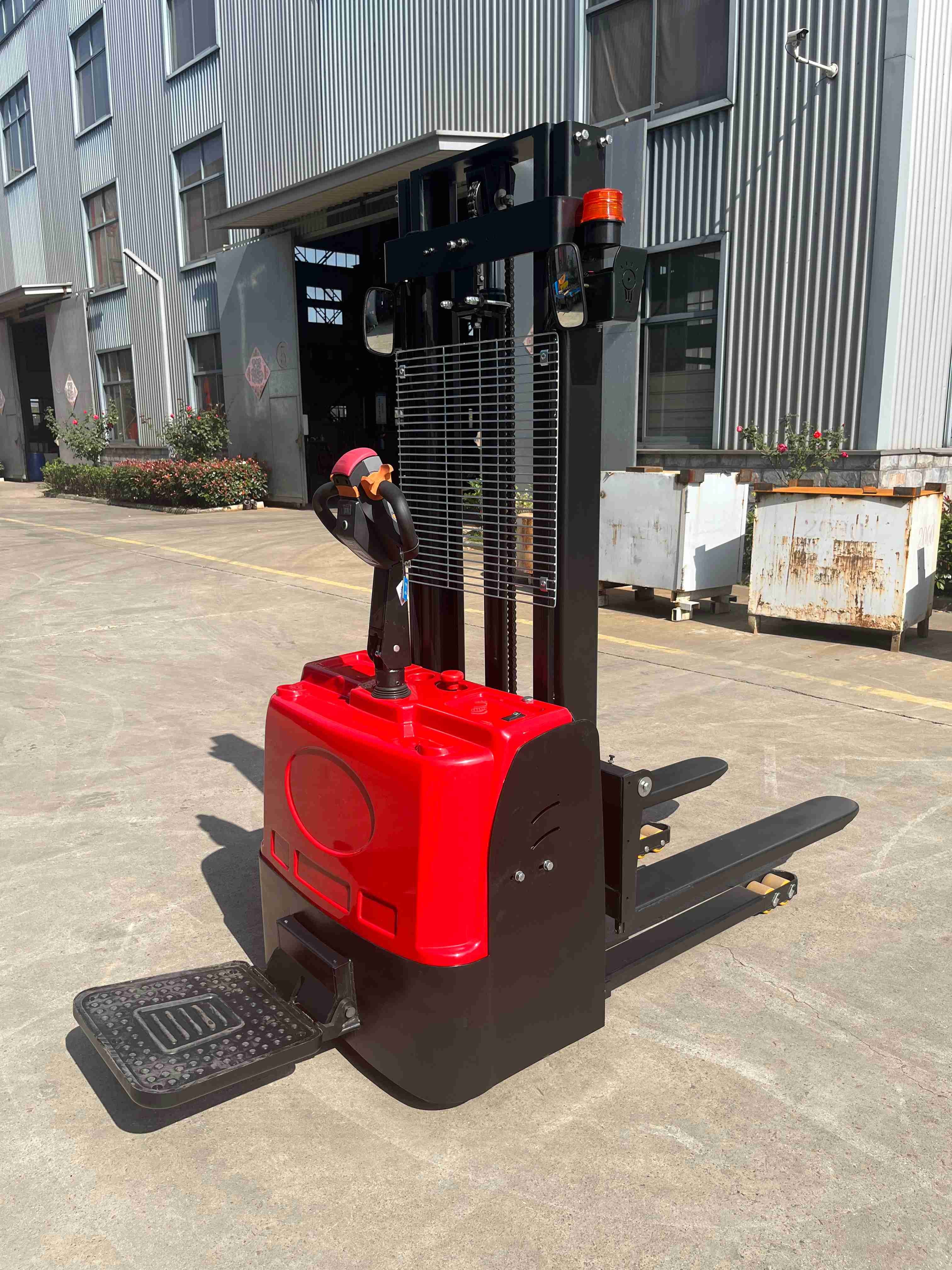

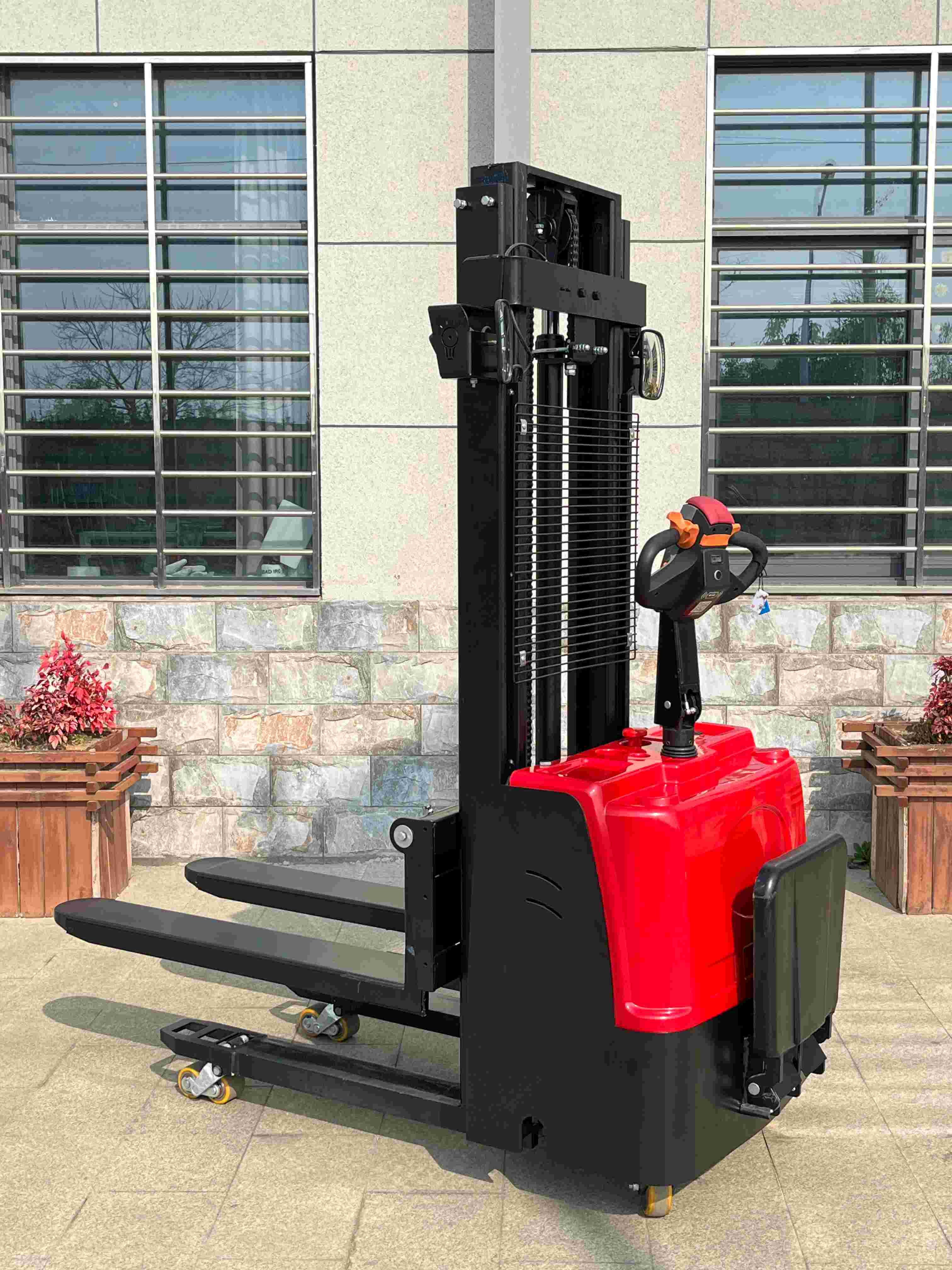

Double Lift 1ton 1000kg 1.5tons 1500kg Electric Ride On Stacker Pallet Stacke
Product Description
High-Efficiency Double Lift Electric Stacker — Smart Handling Redefined
Double Lift Advantage
Our advanced electric stacker features a dual-lift system, allowing simultaneous lifting of both forks and mast. This unique design significantly speeds up stacking processes, making it ideal for high-throughput operations where time and precision are critical.
Superior Efficiency
Dual-Lift Boost: Lifting and adjusting at the same time increases handling speed by up to 30% compared to traditional single-lift models.
Optimized for Tight Spaces: Compact body with excellent maneuverability makes it perfect for narrow aisles and high-density storage.
Cost-Effective Performance
Lower Energy Costs: Powered by high-efficiency electric motors, reducing energy consumption and long-term operational expenses.
Labor Savings: Higher efficiency means less handling time per pallet, reducing workforce requirements.
Eco-Friendly Operations
Zero Emissions: Fully electric drive system produces no exhaust gases, ideal for clean-room environments like food, pharmaceuticals, and electronics.
Quiet Operation: Low noise ensures a more comfortable and productive workspace.
Uncompromised Safety
Smart Safety Features: Equipped with automatic braking, anti-roll-back systems, and load sensors to ensure safety in every operation.
User-Friendly Interface: Simple controls and ergonomic handles minimize operator errors and improve ease of use.
Ergonomic Cabin Design: Reduced vibrations and fatigue for long shifts, increasing overall productivity.
All-Round Visibility: Clear view mast and thoughtful layout for safer maneuvering.
Smarter Technology
Real-Time Monitoring: Integrated control systems provide live performance data, error alerts, and battery status.
Remote Management (Optional): For advanced models, remote diagnostics and fleet management tools are available.
Simplified Maintenance
Easy Access Design: Tool-free access to battery and electrical components for quick servicing.
Low Failure Rate: Fewer mechanical parts mean reduced downtime and maintenance costs.
Operator Comfort
Model
|
|
CDD1030
|
CDD1530
|
Load Capcity
|
kg
|
1000
|
1500
|
Lifting Height
|
mm
|
1600
|
1600
|
Load Center
|
mm
|
500
|
500
|
Fork Size
|
mm
|
1220*100*40
|
1220*100*40
|
Ground Clearance
|
mm
|
130
|
130
|
Pedal Length
|
mm
|
410
|
410
|
Handler Heihgt
|
mm
|
1490
|
1490
|
Outer Distance Between Forks
|
mm
|
685
|
685
|
Inner Distance Between Forks
|
mm
|
345
|
345
|
Tyre type
|
|
Polyurethane
|
Polyurethane
|
Control Way
|
|
Handler
|
Handler
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
The Min. Turning Radius
|
mm
|
1500
|
1500
|
Driving Speed with Full Loads
|
km/h
|
4
|
4
|
Gradient
|
°
|
10
|
10
|
Battery
|
V/Ah
|
24V/180A
|
24V/180A
|
Driving Motor
|
KW
|
1.2
|
1.2
|
Lifting Motor
|
KW
|
2.2
|
2.2
|
Tyre Size
|
mm
|
300/250
|
300/250
|
Overall Size
|
mm
|
2170*1570*2100
|
2170*1570*2100
|
Weight
|
kg
|
900
|
900
|
Reference Working Time
|
h
|
6
|
6
|
Increased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
|
Max height
|
2100/1600/1850/2100/2350
|
Compact Yet Capable
Our lightweight stacker truck is designed for agility. With a compact frame and lightweight body, it's perfect for navigating narrow aisles and tight corners — no need for large turning radiuses or complicated maneuvers.
User-Friendly Operation
Easy to Learn, Easy to Use: Simple control layout makes it ideal for operators of all skill levels.
Labor-Saving Design: Lightweight and well-balanced for smooth handling with minimal physical strain.
Affordable Investment
Budget-Friendly: An economical choice for startups, small warehouses, or occasional use.
Low Operating Costs: Compared to fully electric or larger stackers, enjoy lower upfront cost and minimal energy expenses.
Low Maintenance, High Uptime
Simple Structure: Fewer moving parts means fewer breakdowns and easier troubleshooting.
Quick Maintenance: Basic components can be easily serviced without specialized tools.
Eco-Conscious Handling
Manual or Semi-Electric Options: Choose the power level you need with minimal electricity use.
Energy-Saving Design: Operates quietly and efficiently, with no fuel consumption or emissions.
Versatile Applications
Multifunctional Use: Whether you're handling materials, stacking pallets, or rearranging storage areas, this compact stacker adapts to various warehouse needs.
Indoor-Friendly: Ideal for retail stockrooms, small warehouses, logistics hubs, and production floors.
